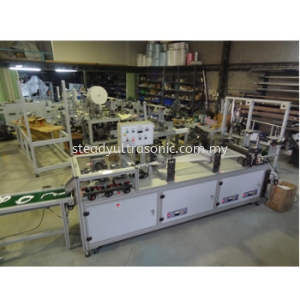

Bouffant cap making machine Description The special design to produce non-woven bouffant cap automatically.  High productivity, stable quality and easy to operate.  The finished products are suitable for hospital or clear room for hygienic or electronic industry . Feature Compact machine size and reliable performance All aluminium alloy made construction Photoelectric sensors for detection Adjustable ultrasonic welding Specification Machine size : 3200 (L) x 960 (W) x 1630 (H) mm Line source : 220V, 1 or 3P Throughput : 40 - 60 pcs/min Product size : 19'' / 21'' / 23'' Power consumption : 6KW read more

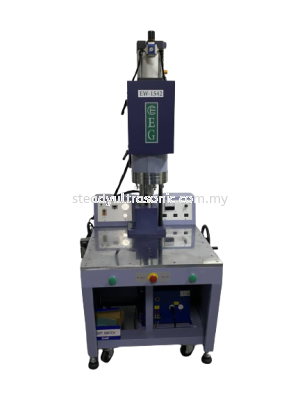

Model:EGW 1542 read more

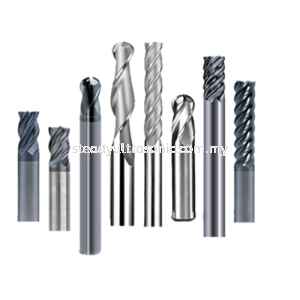

NAME OF COMPANY : STEADY TOOLS SDN. BHD. ADDRESS : No.4 & 6, Jalan Utama 2/30, Maju Jaya Industrial Park, 47100 Puchong, Selangor, MALAYSIA. TELEPHONE NO. : 03-8061 8688 FAX NO. : 03-8061 8868 WEBSITE : www.steadyultrasonic.com/tools.html EMAIL : ultrasonic@steadyultrasonic.com.my BUSINESS REGISTRATION NO. : 738778-D NATURE'S OF WORK : Machine Tool Accessories   WHAT WE DO   read more

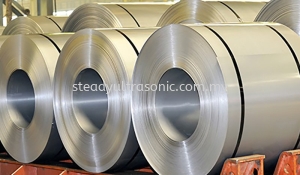

  NAME OF COMPANY : STEADY ULTRASOURCE SDN. BHD. ADDRESS : No.4 & 6, Jalan Utama 2/30, Maju Jaya Industrial Park, 47100 Puchong, Selangor, MALAYSIA. TELEPHONE NO. : 03-8061 8688 FAX NO. : 03-8061 8868 WEBSITE : www.steadyultrasonic.com/source.html EMAIL : ultrasource@steadyultrasonic.com.my BUSINESS REGISTRATION NO. : 643980-A NATURE'S OF WORK : Specialize in: Copper, Brass, Bronze Strip, Stainless Steel   WHAT WE DO   Brass Strip, Copper Strip & Phosphor Bronze Strip Cold Rolled Stainless Steel Coil   PRODUCT PACKINGING     Brass, Copper & PHOSPHOR BRONZE STAINLESS STEEL   PRODUCT STANDARDS FOR BRASS MATERIALS   CHEMICAL COMPOSITION CDA Alloy No. Nominal % Specific characteristics and examples of uses Material Designation Cu Zn Fe Pb C260 68.5 - 71.5 Rem . 0.05 (max) 0.07 (max) Excellent ductility, good property for pressing process and electroplating ability. Normal applications include cartridges, radiators, lighting fittings and snap parts. C268 64.0 - 68.5 Rem . 0.05 (max) 0.15 (max) Good ductility, good property for pressing process and electroplating ability.  In comparison with C260, with higher strength but lower ductility, suitable for making screen decks, lighting, snap parts and sanitary fixtures. PHYSICAL PROPERTIES CDA Alloy No. Density g/cm² Modulus of Elasticity (Young's Modulus) GPa Coefficient of Thermal Expansion at 20°C to 300° m/m - K Thermal Conductivity at 20 °C W/m - K Electrical Conductivity at 20°C (Copper = 100%IACS) C260 8.53 110 19.9 120 28 C268 8.47 105 20.3 116 27   PRODUCT STANDARDS FOR BRASS MATERIALS   MECHANICAL PROPERTIES CDA Alloy No. Temper Grade Tensile Test Hardness Test Thickness mm Tensile Strength kgf/mm² Elongation % Thickness mm Vickers Hardness C260 Annealed 0.2 - <1 >28 >40 >0.2 70 - 90 1 - 2 >28 >50 ¼H 0.2 - 2 33 - 42 >35 >0.2 90 - 115 ½H 0.2 - 2 36 - 45 >28 >0.2 110 - 130 ¾H 0.2 - 2 40 - 46 >25 >0.2 130 - 140 H 0.2 - 2     42 - 55 - >0.2 140 - 160 EH 0.2 - 2 53 - 60 - >0.2 160 - 180 SH 0.2 - 2 >58 - >0.2 >180 C268 Annealed 0.2 - <1 >28 >40 >0.2 70 - 90 1 - 2 >28 >50 ¼H 0.2 - 2 33 - 42 >35 >0.2 90 - 115 ½H 0.2 - 2 36 - 45 >28 >0.2 110 - 130 ¾H 0.2 - 2 40 - 46 >25 >0.2 130 - 140 H 0.2 - 2 42 - 55 - >0.2 140 - 160 EH 0.2 - 2 53 - 60 - >0.2 160 - 180 SH 0.2 - 2 >58 - >0.2 > 180   PRODUCT STANDARDS FOR PHOSPHOR BRONZE MATERIALS   CHEMICAL COMPOSITION CDA Alloy No. Nominal %       Specific characteristics and examples of uses Material Designation Cu     Sn P Cu+Sn+P C511 Rem. 3.5 - 4.5 0.03 - 0.35 >99.5 Good ductility and elasticity, fatigue-resistivity and corrosion resistivity.  Normal application include spring used in electronic and electrical devices, switches, leads connectors, diaphragms and fuse clips. C510 Rem. 4.5 - 5.5 0.03 - 0.35 >99.5 C519 Rem. 5.5 - 7.0 0.03 - 0.35 >99.5 C521 Rem. 7.0 - 9.0 0.03 - 0.35 >99.7 PHYSICAL PROPERTIES Alloy No. Density g/cm² Modulus of Elasticity (Young's Modulus) GPa Coefficient of Thermal Expansion at 20°C to 300° µ/m - K Thermal Conductivity at 20°C W/m - K Electrical Conductivity at 20°C (Copper = 100%IACS) C511     8.86 110 17.5 83 18 C510 8.86 110 17.5 80 16 C519     8.83 110 17.5 79 14 C521 8.80 110 18.0 62 12   PRODUCT STANDARDS FOR PHOSPHOR BRONZE MATERIALS   MECHANICAL PROPERTIES CDA Alloy No. Tensile Test Hardness Test Temper Grade Thickness mm Tensile Strength kgf/mm² Elongation % Thickness mm Vickers Hardness C511 Annealed 0.2 - 2     >30 >38 >0.2 >120 ¼H 0.2 - 2     38 - 45 >28 >0.2 120-150 ½H 0.2 - 2     42 - 52 >18 >0.2 130-160 ¾H 0.2 - 2     48 - 58 >10 >0.2 150-170 H 0.2 - 2     50 - 58 >8 >0.2 170-190 EH 0.2 - 2     >58 >5 >0.2 >190 C510 Annealed 0.2 - 2     >31 >40 >0.2 <120 ¼H 0.2 - 2     38 - 48 >28 >0.2 120-150 ½H 0.2 - 2     48 - 58 >18 >0.2 150-170 ¾H 0.2 - 2     50 - 58 >10 >0.2 170-190 H 0.2 - 2     58 - 68 >8 >0.2 190-210 EH 0.2 - 2     >63 >5 >0.2 >210 C519 Annealed 0.2 - 2     >32 >42 >0.2 <120 ¼H 0.2 - 2     40 - 52 >35 >0.2 120-150 ½H 0.2 - 2     50 - 60 >20 >0.2 150-170 ¾H 0.2 - 2     52 - 62 >18 >0.2 170-190 H 0.2 - 2     60 - 70 >10 >0.2 190-210 EH 0.2 - 2     65 - 75 >8 >0.2 210-240 SH 0.2 - 2 >75 >5 >0.2 230-270 C521 Annealed 0.2 - 2 >35 >45 >0.2 <120 ¼H 0.2 - 2 40 - 52 >40 >0.2 120-150 ½H 0.2 - 2 50 - 60 >37 >0.2 150-170 ¾H 0.2 - 2 52 - 62 >25 >0.2 170-190 H 0.2 - 2 60 - 72 >20 >0.2 190-210 EH 0.2 - 2 70 - 80 >11 >0.2 210-230 SH 0.2 - 2 75 - 85 >9 >0.2 230-270   PRODUCT STANDARDS FOR COPPER MATERIALS   CHEMICAL COMPOSITION CDA Alloy No. Nominal % Specific characteristics and examples of uses Material Designation Cu P O C110 (ETP) ≥ 99.9 - 0.05 Used for building fronts, downspouts, flashing, gutters, roofing, screening, spouting, gaskets, radiators, stranded conductors, contacts, radio parts, switches, terminals, ball floats, butts, cotter pins, nails, rivets, soldering copper and tacks. C122 (DHP) ≥ 99.9 0.015 - 0.040 <0.05 PHYSICAL PROPERTIES CDA Alloy No. Density g/cm² Modulus of Elasticity (Young's Modulus) Gpa Coefficient of Thermal Expansion at 20°C to 300° µ/m - K Thermal Conductivity at 20°C W/m - K Electrical Conductivity at 20°C (Copper = 100%IACS) C110 8.91 119 16.1 394 101 C122 8.94 119 16.1 392 85   PRODUCT STANDARDS FOR COPPER MATERIALS   MECHANICAL PROPERTIES CDA Alloy No. Temper Grade Tensile Test Hardness Test Thickness mm Tensile Strength kgf/mm² Elongation % Thickness mm Vickers Hardness C110 C122 Annealed 0.15-0.25 18-24 >30 0.15-0.25     35-55 ¼H 0.15-0.25 24-30 >13 0.15-0.25     50-86 ½H 0.15-0.25 26-33 >10 0.15-0.25     65-95 ¾H 0.15-0.25 29-35 >5 0.15-0.25     80-100 H 0.15-0.25 30-36 >4 0.15-0.25     90-105 EH 0.15-0.25 33-39 >3 0.15-0.25     95-108 SH 0.15-0.25 35-42 .2 0.15-0.25     100-125   PRODUCT STANDARDS FOR STAINLESS STEEL MATERIALS   Available grades and typical chemical analysis   Grade / Content C SI Mn P S Ni CR A1 SUS301     0.15 below 1.00 below 2.00 below 0.0045 below 0.030 below 6.00 - 8.00 16.00 - 18.00 - SUS304 0.08 below     1.00 below 2.00 below 0.045 below 0.030 below 8.00 - 10.50 18.00 - 20.00 - SUS430 0.12 below 0.75 below 1.00 below 0.040 below 0.030 below - 16.00 - 18.00 -   PRODUCT STANDARDS FOR STAINLESS STEEL MATERIALS   Mechanical Properties Type Symbol Temper Symbol As-cold-rolled or solution treated Hardness Hv Yield Strength N/mm² Tensile Strength N/mm² Elongation % SUS301-CSP 1/2H 3/4H H EH 310 above 370 above 430 above 490 above 510 above 745 above 1,030 above 1,275 above 930 above 1,130 above 1,320 above 1,570 above 10 above 5 above - - SUS304-CSP 1/2H 3/4H H 250 above 310 above 370 above 470 above 665 above 880 above 780 above 930 above 1,130 above 6 above 3 above - SUS430 2B BA 183 below 183 below - - 450 above 450 above 22 above 22 above SUS304 2B BA 200 below 200 below - - 520 above 520 above 40 above 40 above read more

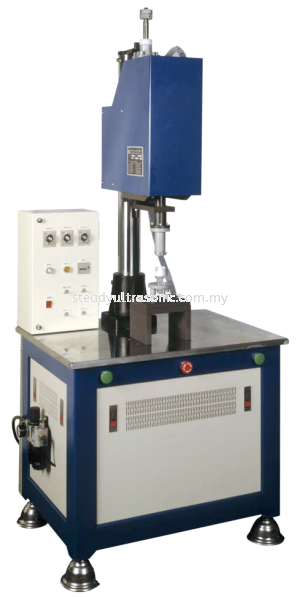

Spin Welding Machine Model:EGP-150 The spin welding machine is selected according to the product size and the material used, which specification can be modified. The spin welding machine may be applied in floater, paint tank, spherical toy, PP thermos cup, oil filter (for motor bike), spray connector, Thermos bottle interior...etc. Features: Precise structure design, with high speed rotate friction theorem to enable parts together. According to the product size and use material, the machine specification can be modified. Strong welding strength to meet waterproof and airtight requirements. Structure design to tally with ergonomics, easy operation, stable quality. The special fixed position spin welding machine can be designed according to different product requirements. Welding strength strong to realize water-proof. Can fix position according to the produce need, to design fix position spin welding machine. Application Floater, paint tank, spherical toy, PP thermos cup, oil filter (for motor bike), spray connector, Thermos bottle interior...etc. Model EGP-150 Working Size 5 kg/cm² Dimension 700 x 850 x 1,800 mm Net Weight 240 kg Line Source 220V AC 3P read more

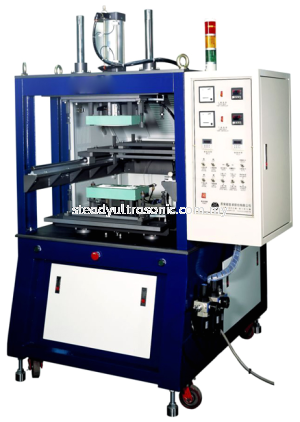

Hot Plate Welding Machine Model:EGH-400 / EGH-600 The hot plate welding machine is designed according to different sample sizes and material. The hot plat welding machine is applied in Car light, car bumper, washing machine balancer, vacuum cleaner, pallet...etc. Features: Hot Plate Welding Machine Features Precise structure design, with high welding. Can be designed according to different sample sizes and material. PLC computer control system, with safe device and non-error movement. Linear slide guide design, high precision, stable quality, can meet waterproof and airtight requirements. High productivity, good efficiency. Hot Plate Welding Machine Application Car light, car bumper, washing machine balancer, vacuum cleaner, pallet and many other large or asymmetrical products needed water proof and air-tight. Model EGH-400 EGH-600 Working Size L350 x W400 x H250 mm L390 x W620 x H400 mm Dimension 1,730 x 1,180 x 1,880 mm 2,015 x 1,380 x 2,340 mm Net Weight 500 kg 700 kg Line Source 110/220V AC 1P/3P 110/220V AC 1P/3P read more
